XA 140540N / XOU15/540 Cross roller bearing slewing rings external gear 471x640.3x48mm INA Brand

Name: XA 140540N XOU15540 Cross roller bearing slewing rings external gear 471x6403x48mm INA Brand
Brand: YDPB
Price: 1 USD

Brand Name : YDPB

Model Number : XA 140540N / XOU15/540

Certification : ISO

Place of Origin : Luoyang，China

MOQ : 1PCS

Price : 1$

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 1000pcs/month

Delivery Time : 5-7days

Packaging Details : bearing+thin plastic film+waterproof paper+thin foam+carton/wooden cases

Model : XA 140540N / XOU15/540

Material : 50Mn Or according to you

Structure : Cross roller bearing

Dimension : 382x598.2x65mm

Application : Manipulators

Name : INA Cross roller bearing slewing rings

Contact Now

XA 140540N / XOU15/540 Cross roller bearing slewing rings external gear 471x640.3x48mm INA Brand

Structure:Cross roller
Gear teeth: external
Seals type:double seals
Material: 50Mn/ custom made
For light duty industrial manipulator or precision robotics.

Applications

XA series slewing ring bearings have been used successfully in a wide range of applications from light to heavy duty. The smaller sizes are well suited for:

Manipulators
Jib cranes
Lift-assist devices
Work positioners

Larger sizes are well suited for:

Truck-mounted cranes
Aerial lifts
Hoists
Small wind turbines
Non-precision positioning tables

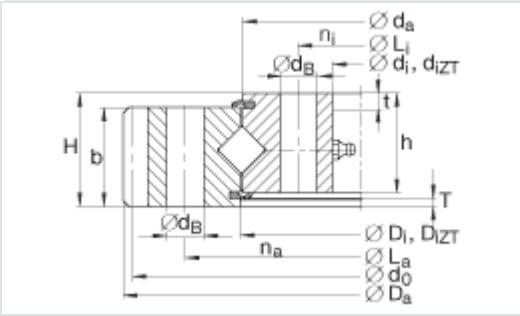

Structure and Parameters:
XA 140540N / XOU15/540 Cross roller bearing slewing rings external gear 471x640.3x48mm INA Brand

Model	INA	Outer dimension (mm)				Mounting dimensio n(mm)						Gear datas (mm)				Axial Static load rating (KN)	Weight (KG)
		Da	D	di	H	La	Li	n1	n2	φ1	φ2	m	z	do	x		Weight (KG)
XOU10/235	XA 120235N	318.8		171	40	275	195	12	12	13	13	4	78	312		280	13
XOU20/307	XA 180307N	408.4		235	55	358	259	24	24	13	13	5	80	400		450	29
XOU15/407	XA 160407N	503.3		335	50	455	359	30	30	13	13	5	99	495		600	33
XOU25/475Y	XA 260475N	598.2		382	65	540	410	36	36	16	16	6	98	588		1060	64
XOU30/560	XA 280560N	708		464	87	628	492	56	56	16	16	10	69	690		1245	110
XOU15/540	XA 140540N	640.3		471	48	585	495	40	40	13	13	6	105	630		770	39
XOU15/596	XA 160596N	712.3		510	55	650	542	24	24	18	18	6	117	702		880	63
XOU15/640	XA 140640N	742.3		571	50	685	595	44	44	13	13	6	122	732		910	50
XOU25/685	XA 240685N	830.1		577	68	753	617	24	24	22	22	8	102	816		1380	115
XOU20/720	XA 200720N	844.3		630	59	780	662	30	30	18	18	6	139	834		1180	87
XOU15/753	XA 140753N	862.3		674	50	800	706	28	28	18	18	6	142	852		1060	65
XOU20/818	XA 200818N	940.1		728	60	875	760	36	36	18	18	6	155	930		1460	100
XOU30/845	XA 280845N	1008		730	87	920	770	40	40	22	22	10	99	990		1830	200
XOU20/895	XA 220895N	1038.1		790	68	960	830	32	32	22	22	8	128	1024		1860	145
XOU30/995	XA 280995N	1158		882	80	1068	922	40	40	22	22	10	114	1140		2550	210
XOU20/978	XA 220978N	1110.1		883	68	1040	915	52	52	18	18	8	137	1096		2100	140
XOU15/969	XA 140969N	1086.1		890	60	1015	922	36	36	18	18	8	134	1072		1400	105
XOU35/1117	XA 341117N	1293.6		995	100	1198	1035	60	60	22	22	12	106	1272		3600	310
XOU30/1213	XA 301213N	1389.6		1095	92	1290	1135	56	56	22	22	12	114	1368		3800	300
XOU25/1320Y	XA 261320N	1485.6		1210	85	1390	1250	52	52	22	22	12	122	1464		3800	285
XOU35/1455	XA 341455N	1653.6		1317	95	1545	1365	56	56	26	26	12	136	1632		5100	430
XOU30/1600Y2	XA 301600N	1803.5		1470	92	1682	1518	52	52	26	26	14	127	1778		4200	460
XOU50/1790	XA 501790N	2027.5		1621	130	1905	1675	76	76	30	30	14	143	2002		8200	890
XOU40/1765	XA 401765N	1971.5		1622	110	1860	1670	68	68	26	26	14	139	1946		6100	640
XOU40/1832	XA 401832N	2041.5		1687	110	1930	1735	72	72	26	26	14	144	2016		6400	680
XOU20/1821	XA 221821N	2013.1		1714	100	1886	1754	64	64	22	22	18	110	1980		3900	500
XOU40/1985	XA 401985N	2229.1		1826	110	2089	1880	72	72	30	30	18	122	2196		6900	810
XOU40/2130	XA 402130N	2381.4		1965	118	2235	2025	52	52	33	33	16	147	2352		7600	980
XOU35/2253	XA 342253N	2457.6		2112	118	2345	2160	88	88	26	26	12	203	2436		5600	850
XOU30/2304	XA 282304N	2493.4		2190	110	2378	2230	92	92	22	22	16	154	2464		5350	680
XOU40/2355	XA 402355N	2605.1		2190	118	2460	2250	60	60	33	33	16	161	2576		7000	1070
XOU40/2638	XA 402638N	2861.1		2492	118	2735	2540	104	104	26	26	16	177	2832		7300	1050
XOU45/2815	XA 452815N	3096.8		2640	127	2930	2700	84	84	33	33	20	153	3060		9500	1490
XOU45/2935	XA 452935N	3216.8		2760	127	3050	2820	84	84	33	33	20	159	3180		10000	1560
XOU50/3005	XA 503005N	3272.8		2820	138	3130	2880	104	104	33	33	18	180	3240		12100	1720
XOU45/3170	XA 453170N	3436.8		2995	127	3285	3055	92	92	33	33	20	170	3400		10600	1610
XOU50/3365	XA 503365N	3632.8		3180	138	3490	3240	116	116	33	33	18	200	3600		13100	1920
XOU50/3585	XA 503585N	3866.8		3400	138	3710	3460	124	124	33	33	18	213	3834		14500	2130
XOU50/3765	XA 503765N	4046.8		3580	138	3890	3640	128	128	33	33	18	223	4014		15200	2240
XOU50/4175	XA 504175N	4436.8		3970	138	4285	4030	144	144	33	33	20	220	4400		16800	2430

Drawings and other parameters ,pls contact us free, thanks

Market:
After years of development ,our products have been sent out to Germany ,Italy, Spain, Romania,Belgium,Israel,Russia,Korea,Mexico,India etc. Good quality and Service earn the constant supports from all our customers. any of your questions will be welcomed here any time.
Payment Terms:
Most of our customers use T/T( 40% in advance, Balance before shippment), Western Union ,Money Gram, for larger amount consider LC, all can be negotiable.

Many other precision bearings series available

Online shopping Address: www.ydpbbearings.com

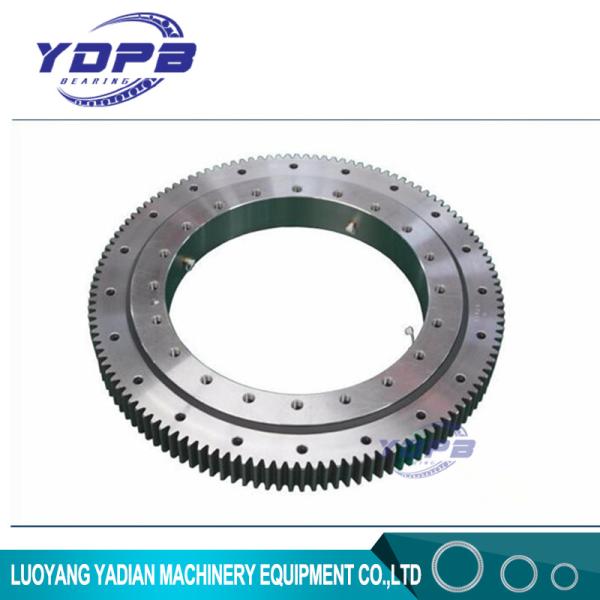

XA 140540N / XOU15/540 Cross roller bearing slewing rings external gear 471x640.3x48mm INA Brand Images
